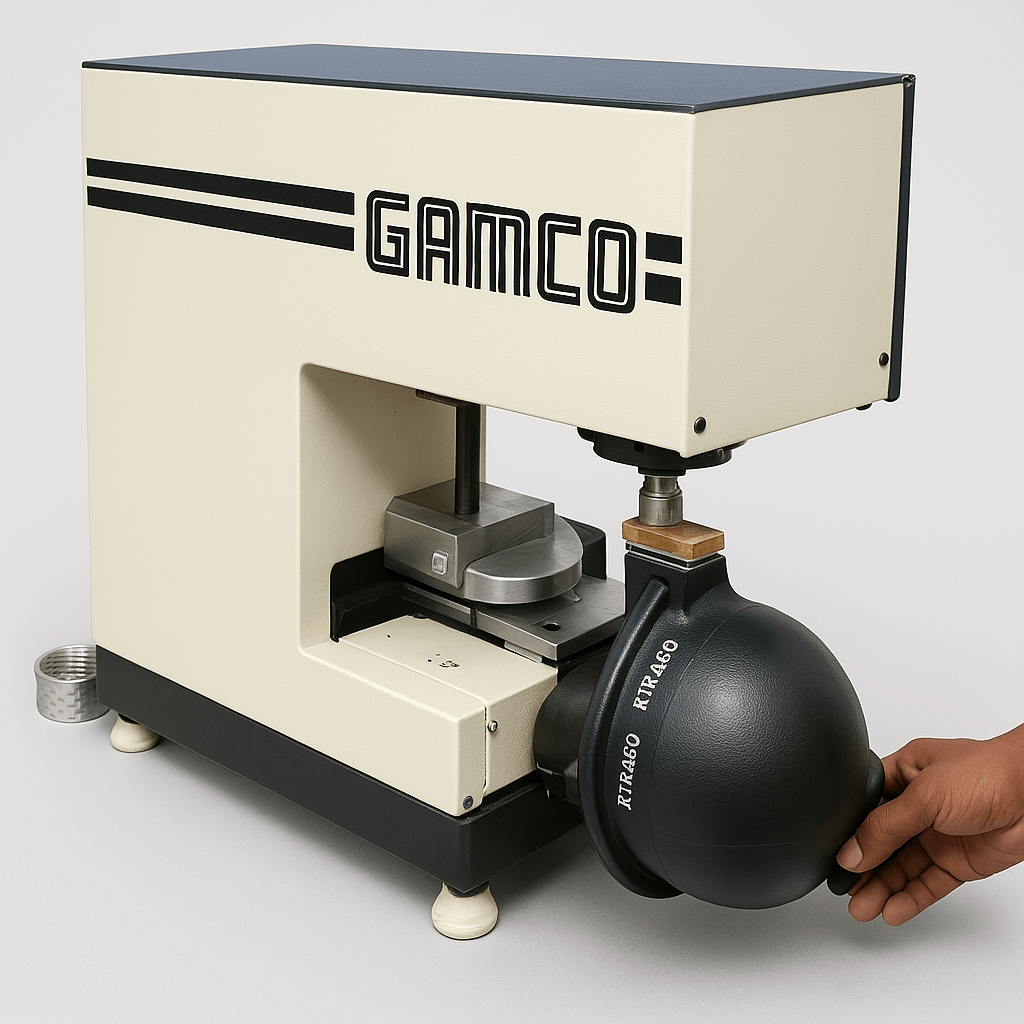

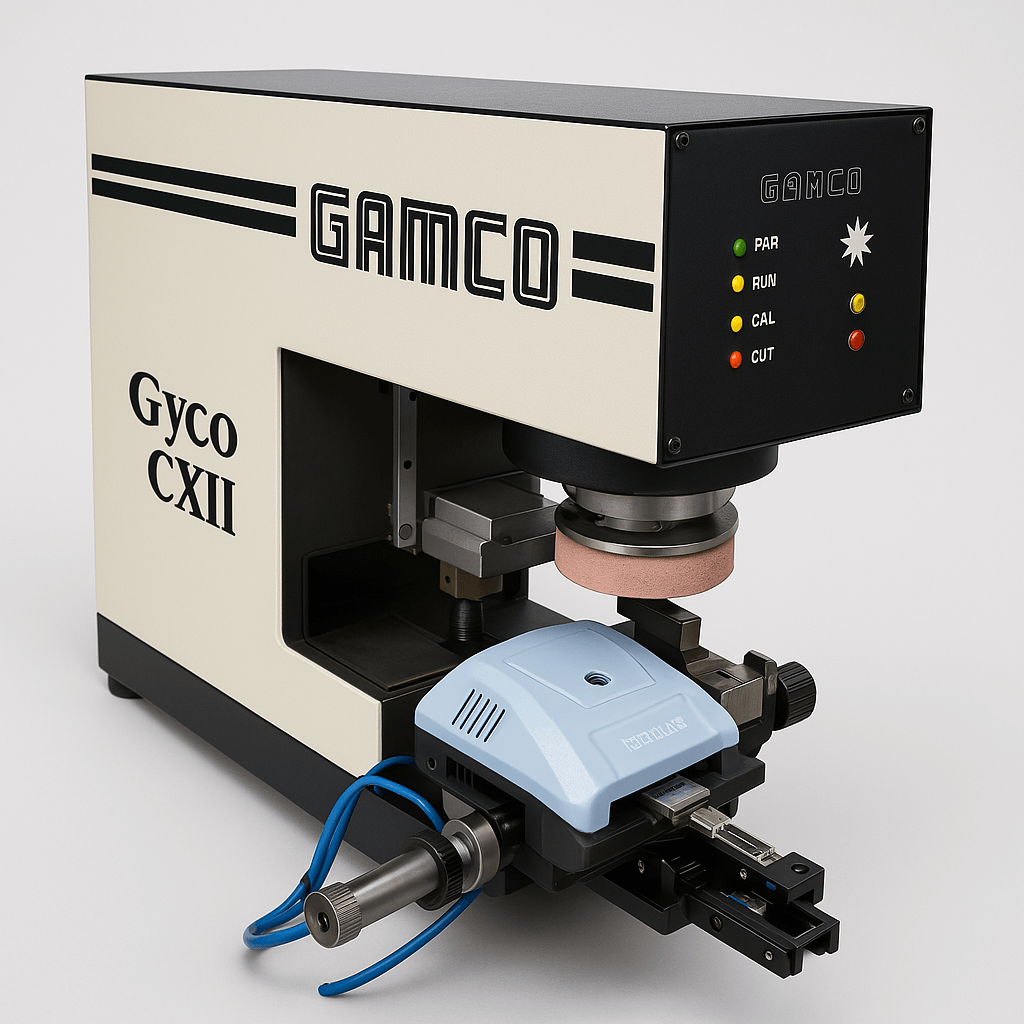

Pad Printing Machine
High-precision Pad Printing Machine ideal for printing on irregular, curved, or flat surfaces across various materials.
A Pad Printing Machine is a specialized printing device used for transferring ink-based images onto various substrates using a silicone pad. It is widely utilized in industries such as electronics, automotive, medical devices, promotional products, and packaging due to its ability to print on curved, textured, and irregular surfaces with high accuracy. The machine works by transferring ink from an etched plate (cliché) onto the product through a silicone pad, allowing for detailed and durable prints even on complex shapes. Pad printing machines are available in manual, semi-automatic, and fully automatic models, with features like multi-color printing, adjustable printing heads, and microprocessor controls. Known for their efficiency, consistency, and fine detailing, these machines are ideal for logos, icons, serial numbers, and branding on plastic, metal, glass, ceramics, and more.
Technical Specification
| Model: | GYCO XC 2D |
|---|---|
| Standard Cliche Plate Size | 210*100*10 mm |
| Max. Printing Dia | Up to 80 mm |
| No. of Colour | 2 |
| Printing Capacity | 1200 Prints/Hr |
| Max. Height of product | 150 mm |
| Drive | Pneumatic Two |
| Printing Force | 600 N at 6 Bar |
| Compressed Air Connection | 5 - 6 bar Working Pressure |
| Air Consumption | 2.8 Nm³/Hr @ 6 bar |
| Pad Vertical Stroke | Max. 80 mm |
| Speed Adjustment | Infinitely Adjustable via Air flow Controller |
| Length | 800 mm (approx.) |
| Breadth | 500 mm (approx.) |
| Height | 660-1500 mm (approx.) |
| Weight | 90-150 kg (approx.) |
